The Hammer is also easy to install.

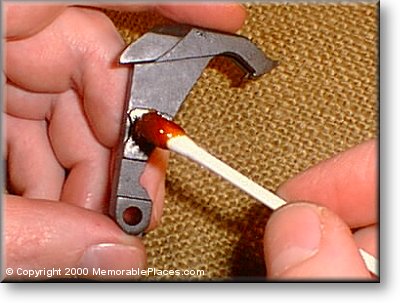

Before you place the hammer in the housing lightly grease the left hand side of it. Put just a very very light coating of oil in the hole where the hammer pin will be inserted.

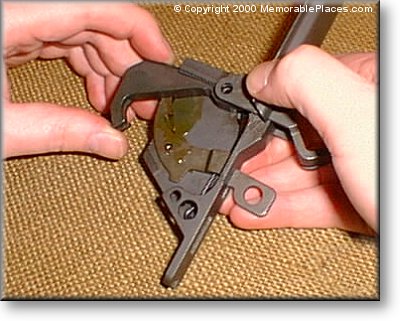

The next step is to insert the Hammer into the trigger housing. First close the trigger guard almost fully and then slide the Hammer into position in an upright fashion as shown above.

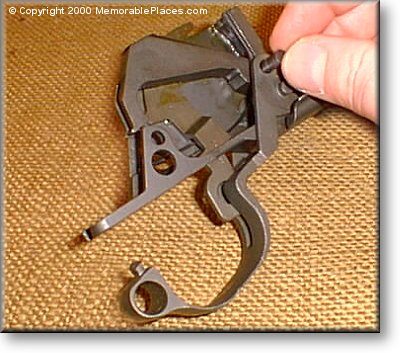

When the Hammer is in place and lined up with the holes insert the Hammer Pin. The Hammer Pin is inserted from the right hand side of the trigger housing and is pressed down until it is flush inside the right trigger guard 'ear'.

Next - the Hammer Spring Assembly!
