Hammer Pin and Trigger Pin


Part name: Hammer Pin & Trigger Pin

Part Function: The Hammer Pin fits into the forward part of the Trigger Housing and provides a pivot point for the rotation of the trigger guard and Hammer as well as holding both in place.

The Trigger Pin fits into the rear of the Trigger Housing and provides a rotation point for the Trigger, and the Hammer Spring Housing.

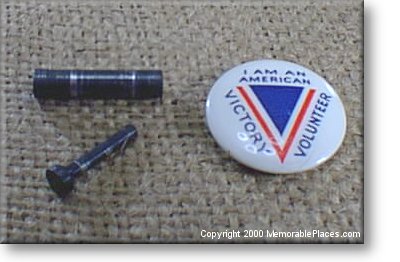

Special Notes: In the photo above the Hammer Pin is pictured at the top and the Trigger Pin is pictured below.

Other items of interest in this photograph: W.W.II Victory Volunteer Button. These buttons were given to people who helped with the war effort in a myriad of ways on the 'home front'.

Trigger Group Pins assembled in Trigger Group
